Environmental Meteorological Tower

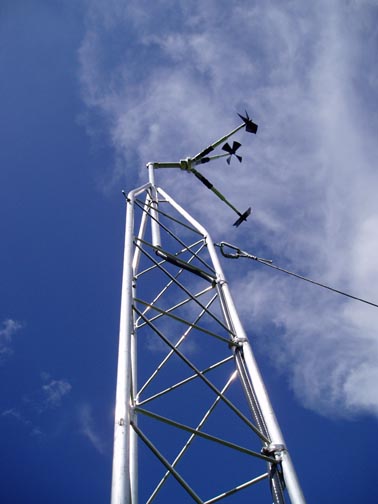

M-10M Environmental Meteorological Towers

The M-10M is a 10-meter freestanding meteorological tower designed for small, lightweight antennas, with a maximum of 35 lb (15 kg) weight and 3 sq. ft (0.27871 m²)  surface area. This aluminum MET tower is ideal for wind speed and direction equipment, sensors, and light antennas. A tilt-base is designed to be cemented directly into the concrete pad supplied by user. It can also be used in temporary guyed installations. The tower comes equipped with a hinged base, a temporary mounting plate, guy wire attachment points, and a guy kit.

Specifications

This tower consists of three-sided, 10 m (32 ft) equilateral triangle cross-section constructed of tubular legs made of 6061-T6 aluminum. The three 10 ft (3.048 m) sections are sleeved for quick installation. The freestanding tower is durable, lightweight, and easy to use. It’s rated for an impressive 110 mph (49.174 m/s) wind speed when properly installed.

Towers are complete with base and 1 in (2.5400 cm) schedule 40 pipe x 5 ft (1.5240 m) long aluminum mast.

  • Model M-10M-PT freestanding tower consists of three 10 ft (3.0480 m) aluminum sections with M-787 tilt base. The tilt base is precast directly into a concrete pad.
  • Model M-10M-TEM tower for temporary installation consists of three 10 ft (3.0480 m) aluminum sections with a M-818 aluminum plate tilt base. Guying is required for roof or concrete slab installation. Guy Kit #1-30BG is available.
  • Model M-10M-PTGIN tower consists of three 10 ft (3.0480 m) aluminum sections plus a gin pole to facilitate the tilting of tower by one person.

10M Fold Over Aluminum Tower

FOT-10 10-meter aluminum tower is for small lightweight antennas or equipment. It was specifically designed to elevate air-sampling equipment; the tower tilts easily to allow for rapid collection of samples. The tower consists of two “B” sections: lower section 17 ft (5.1816 m) and upper section 25 ft (7.62 m). The upper section is hinged b the lower section to allow fold-over. The tower has a mast that is a 2 in diameter x 1/8 in wall round tube and is 4 ft 9 in long.  The assembly also comes with a fixed base. The lower section must be guyed or bracketed to a building at a minimum of six feet high along one side of the tower.

10M CRANK-UP ALUMINUM TOWERS

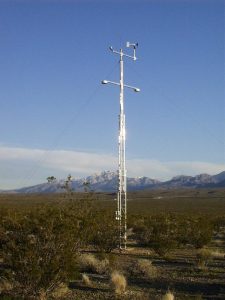

Model T-135 and T-35H are 35 ft (10.668 m) aluminum telescoping towers. The 35 ft telescoping towers nest to approximately 12 ft (3.6576 m). These towers feature a tilt base. They can be “walked up” by one person and telescoped to the desired height. The towers are manufactured from 6061-T6 aluminum and are complete with a tilt-base, building bracket, and mast. See Telescoping Guyed Towers for details.

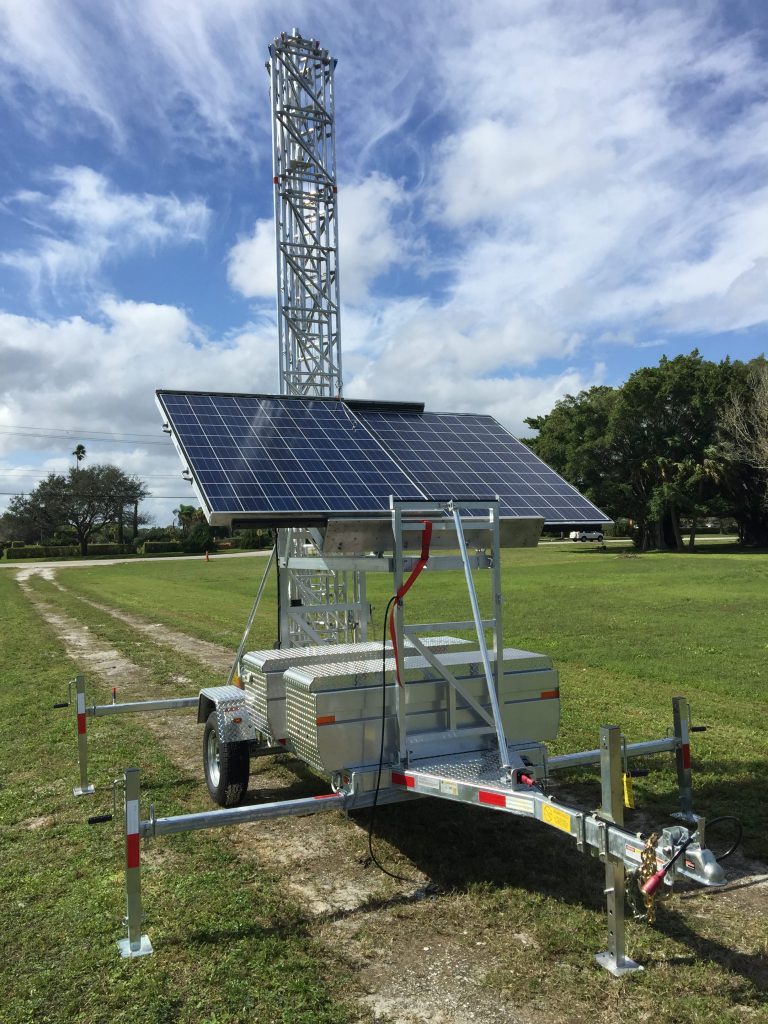

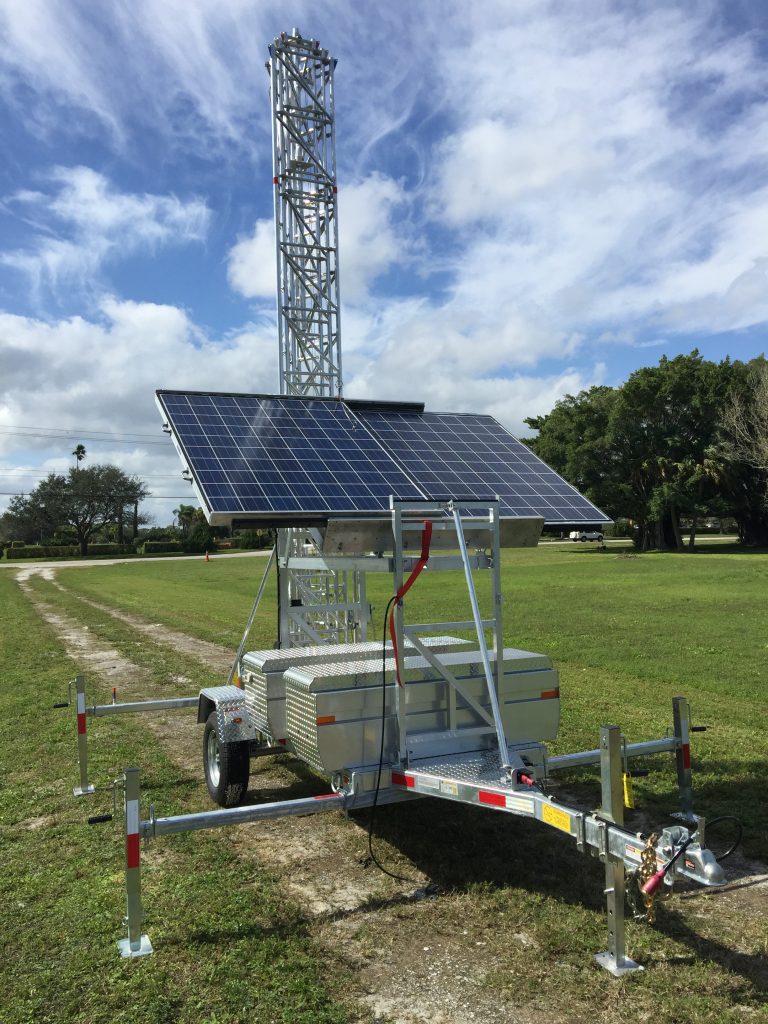

mobile solar tower

Mobile Portable Towers

For mobile operations, Aluma offers trailer tower solutions as well as vehicle-mounted towers. The transportable tower units are designed for rapid setup and easy operation in the field.

Trailer Towers with Aluminum Telescoping Towers

Telescoping 10M towers also combined with trailers to provide portable units. TM-12/T-DD-135 and TM-12/T-DD-35H are single-axle galvanized trailers with 35 ft (3.6576 m) aluminum crank-up towers. See Open Trailer Tower.

Vehicle-Mounted Aluminum Telescoping Towers

Vehicle-mounted aluminum telescoping towers are designed for mounting on the customer’s vehicle. BD-110M and BD-10MHD are 10M crank-up towers complete with track and carriage. See Vehicle Mounted aluminum telescoping towers.

CAUTION: Take care to avoid any contact with overhead power lines when raising, installing, or lowering your tower.

Click here to full WARNING

For more information please contact us today at 772-567-3423.
