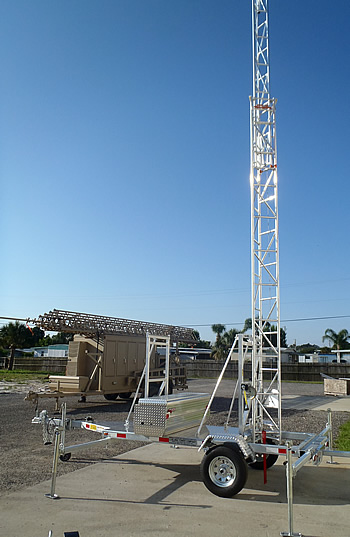

TM 12: Small Mobile Tower

The TM-12 is a compact, small mobile tower system engineered for projects where lightweight mobility and rapid deployment are essential. This portable tower is ideal for meteorological monitoring, test data acquisition and field operations that require a smaller footprint. The TM-12 platform complies with DOT Federal Motor Carrier Safety Regulations in all 50 states and ships worldwide. Multiple models are available, including the TM-12, the TM-12HD, which features a higher payload capacity, and the TM-12UG, which has unguyed tower capability.

Construction and Design

The TM-12 lightweight tower combines durable materials with thoughtful engineering to deliver a portable tower solution that provides long-lasting performance, even in remote and rugged environments. Its core features include:

  • Tubular structural steel construction: The trailer chassis is fabricated from high-grade tubular steel, which provides superior strength and long-term reliability in the field.
  • Hot-dip galvanized finish: Every trailer and tower features a full hot-dip galvanization finish, which protects against corrosion and environmental wear.
  • A-frame tongue with T-bar design: The A-frame tongue and integrated T-bar give the trailer added towing stability and increased structural integrity.
  • Five stabilizing outriggers: For safe deployment, the TM-12 uses five outriggers to maintain balance on uneven ground.
  • Sliding outrigger system: The sliding outrigger system allows quick setup, reducing time on-site.
  • Rapid deployment capability: The TM-12 can be set up quickly in the field without complex tools or time-consuming preparation, making it ideal for urgent monitoring or temporary communications jobs.

Request A Quote

Deck Specifications

  • Dimensions: 4 feet (1.22 meters) wide by 10 feet (3.05 meters) long.
  • Equipment cabinet compatibility: You can easily add a small equipment cabinet to support your specific field requirements.
  • Small deck for accessory mounting: Mount solar panels, battery systems or storage boxes as needed to customize your mobile unit.
  • Galvanized trailer chassis: The trailer’s fully galvanized chassis delivers outstanding longevity and structural support.

Tower Options and Capabilities

The TM-12 series offers several configurations to suit your mission requirements:

  • Standard duty models: These models offer dependable performance for general use.
  • Heavy-duty options: Ideal for heavy-duty applications.
  • Extra-heavy-duty capacities: Suitable for the most intense applications.

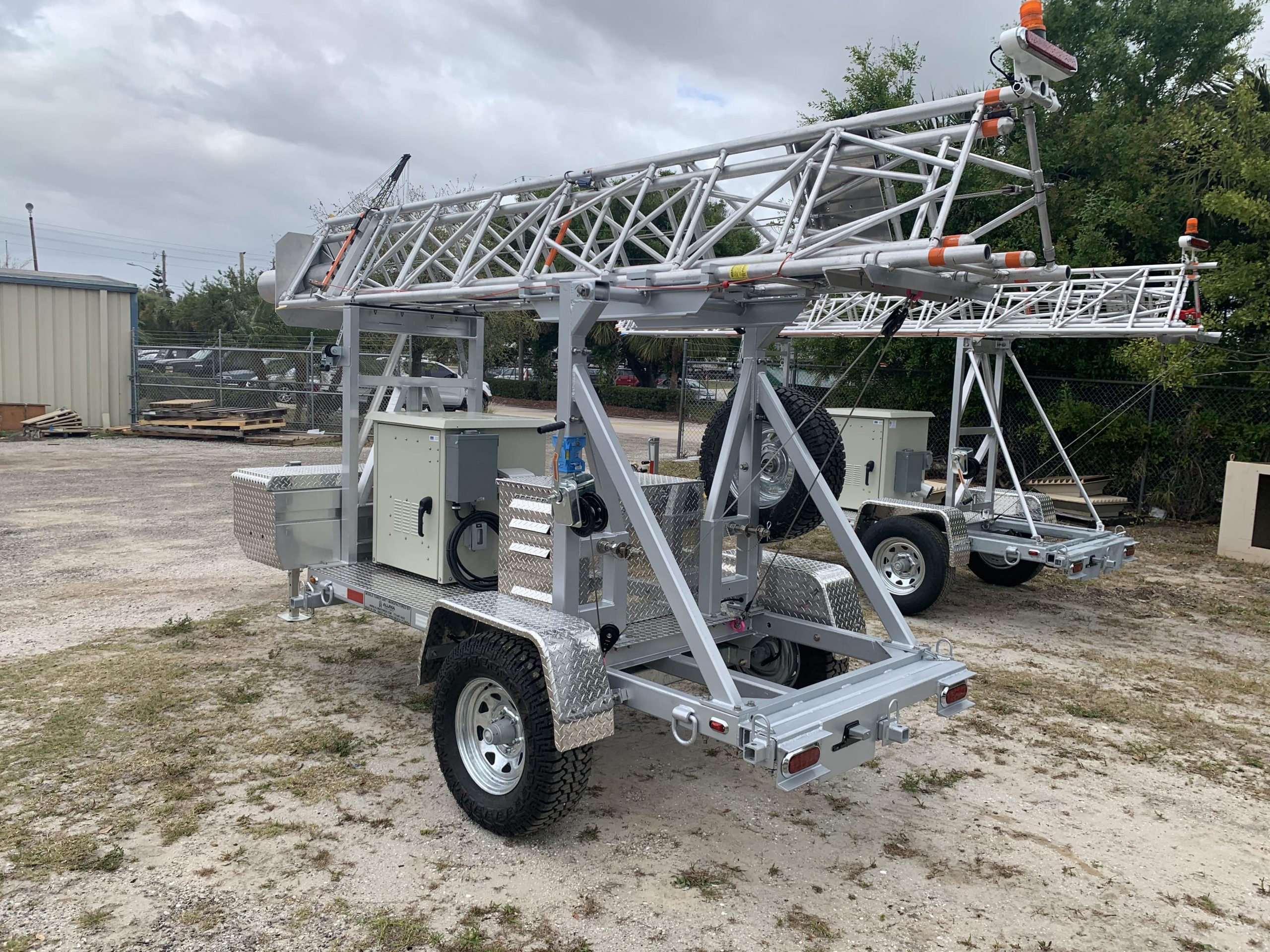

  • Unguyed capability: Unguyed T2 tower capability available on the TM-12UG model allows for flexible installation.

You can also choose from several tower heights:

  • 17 feet (5.18 meters)
  • 35 feet (10.67 meters)
  • 50 feet (15.24 meters)
  • Unguyed up to 32 feet (10 meters)

Applications

This small mobile tower platform is ideal for teams who need lightweight, compact and reliable systems for a wide range of applications, including:

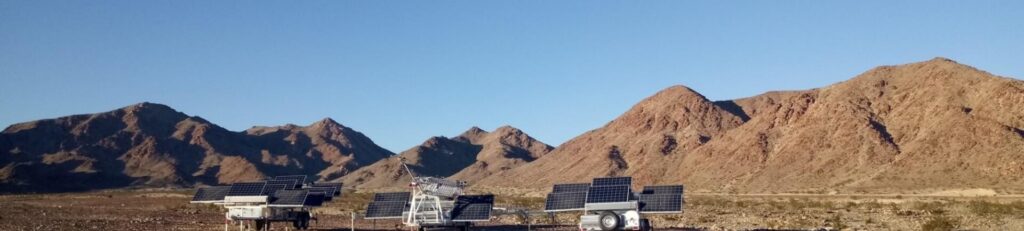

  • Meteorological projects: The TM-12 tower is ideal for quickly establishing weather monitoring stations in locations where permanent infrastructure is lacking or impractical.
  • Test data acquisition: The TM-12 provides a portable platform for mounting sensors and data acquisition equipment. Its portability allows for measurements in various locations, while its rugged construction ensures reliability in diverse environments.
  • Jobs requiring portable units: Its easy transportability and rapid setup are ideal for utility workemergency response or any operation that needs a mobile tower system you can deploy with tight transport logistics.
  • Telecommunications: The TM-12 can host cellular and Wi-Fi radio equipment for temporary coverage and capacity where permanent infrastructure is unavailable.

The TM-12’s lightweight nature makes it easily transportable by various vehicles, including SUVs, trucks, ATVs and aircraft, enabling fast deployment to remote or challenging locations.

Available Accessories

Improve your portable tower’s performance and on-site capabilities with a variety of reliable accessories:

  • Aluma coax reels
  • Spare tires
  • Antenna storage tubes
  • Solar power systems
  • Storage boxes
  • Portable generators
  • Equipment cabinets

Enhance Your Operations with the TM-12 Lightweight Tower Today

The TM-12 small mobile tower delivers the portability and quick deployment capability required for a wide range of utility or emergency response applications. Each unit is engineered for long-term reliability and comes with an array of customizable options to suit your operational needs. Our experienced team is ready to help you choose accessories, recommend the best model and coordinate fast delivery worldwide. Request a quote today.

TM-12 Specs

Specifications TM-12
TOWERS AVAILABLE WITH UNIT GUYED – STANDARD, HEAVY DUTY MODELS UP TO 50 ft (15.24 m)
UNGUYED (UG MODEL) – T2 UP TO 32 ft (10 m)
TRAILER WIDTH OVERALL 69 1/2 in (176.53 cm)
TRAILER WIDTH, FRAME ONLY 48 in (121.92 cm)
TRAILER DECK HEIGHT 20 in (50.80 cm)
TRAILER LENGTH OFTALL (W/O COUPLER) 15 ft 11 in  (191 in ) (4.85 m)
TRAILER GROSS VEHICLE WEIGHT (GVWR) 2,990 lb (1,356 kgs)
5,190 lb (2,354 kgs) HD MODEL
TRAILER BARE WEIGHT 990 lb (449 kg)
TRAILER GROSS AXLE WEIGHT (GAWR) 3,500 lb (1,588 kgs)
5,200 lb (2,359 kgs) HD MODEL
TRAILER APPROX. WEIGHT SHIPPED
(VARIES WITH DIFFERENT ACCESSORIES )
1,800 lb (816 kgs)
2,100 lb (953 kgs) HD MODEL
NUMBER OF AXLES 1 (SINGLE)
AXLE CAPACITY RATING (EACH) 3,500 lb (1,588 kgs) LEAF SPRING
5,200 lb (2,359 kgs) TORSION HD MODEL
COUPLER CHANNEL (POSITIONS/HOLES) 3 POS./4 HOLES
STANDARD COUPLER SIZE 2 5/16 in (5.87 cm)  BALL, 7,000 lb (3175 kg)CAP., 2 HOLES
ELECTRIC BRAKES NONE
YES HD MODEL
TIRE SIZE (NOTE: ALL RADIAL TIRES!) ST205/75R14
ST225/75R15 HD MODEL
TIRE LOAD RANGE C
HD MODEL
TIRE CAPACITY AND LOAD RATE 1,760 lb (798 kgs)
2,540 lb (1150 kgs)
TIRE PSI 50 psi
65 psi HD MODEL
WHEEL / RIM SIZE (DIA./WIDTH/BOLT PATTERN ) 14 in (36 cm) / 4.5 in (11.43 cm) / 5 ON 4.5 in
15 in (38 cm)/4.5 in (11.43 cm) / 6 ON 5.5 in
FINISHED HEIGHT, TOWER IN USAGE POSITION 96 in (243.84 cm)
FINISHED HEIGHT, TOWER IN STOWED POSITION 74 in (187.96 cm)
OVERALL LENGTH WITH TOWER MOUNTED 17 ft 6 in (5.33 m) (211 ½ in )
UID Label MIL-STD-130 AVAILABLE
