TM 54-80 Mobile Tower Systems

Mobile Telescoping Tower Trailer System

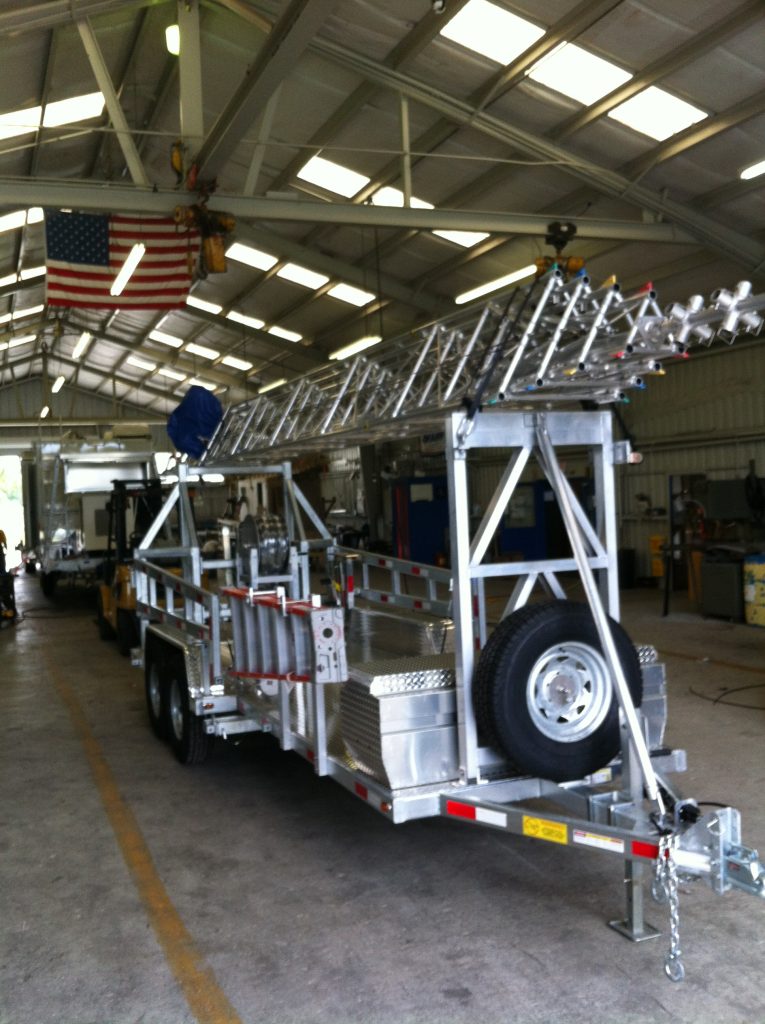

One of the newest products offered by Aluma is the 54-80 line of mobile tower systems.  When coupled with our innovative TU series mobile tower systems, the 54-80 provides a rapidly deployable, mobile telescoping trailer tower system that is capable of being air transported via C-130 aircraft.  These well-designed mobile tower systems have many available options and accessories, including an all-aluminum shelter that can be affixed to the upper deck structure (model 54-80S).

The TU series towers are adapted to these mobile tower systems to provide a very capable, self-supporting tower system.  This mobile telescoping trailer tower system can handle up to a 92 ft (28 m) TU series unguyed tower.  When complete, the 54-80 models provide excellent coverage for your mobile tower.

Mobile Tower Systems

These mobile tower systems have numerous available accessories including power winches, custom electrical systems (including International variations), HVAC systems, equipment racks, cable handing accessories (cable trays, coax reels, I/O ports, etc.), spare tires, and many others.   As with all of our units, you can be cover the 54-80 with any coating (paint, powder coat, anodize, CARC, etc.) you desire.

Some key features of these mobile tower systems are as follows:

  • These highly capable mobile tower systems employ practical features to provide longevity, reliability, ruggedness, and mobility. They are our baseline mobile telescoping unguyed tower trailer systems.
  • For the ultimate in mobile tower systems, you can combine our Smart Tower Technology with this unit and obtain a remote-controlled mobile telescoping tower trailer system.
  • Due to their lightweight platform, these mobile tower systems are highly portable. This unit is capable of C-130 transport and can be towed by a wide variety of motorized vehicles.
  • We offer the 54-80 models as a cost-effective, reliable, user-friendly solution to the marketplace, a missing segment in mobile tower systems.
  • The 54-80 series of mobile telescoping trailer tower systems provide rapid deployment units. They require approximately 15 minutes of setup time with two capable people. This is one of the swiftest communication setups for mobile tower systems.
  • Specifications are summarized in the data tables shown below for the two available versions.

For more information on the TM 54-80 please contact us.

Non-Shelter Model

Specifications TM54-80
TOWER AVAILABLE WITH TRAILER UNIT GUYED – HD, XHD & XXHD

UNGUYED – TU MODELS
ALUMINUM SHELTER SIZE N/A
TRAILER WIDTH OVERALL 90 1/2 in (2.3 m)
TRAILER WIDTH, FRAME ONLY 88 in (2.2 m)
TRAILER DECK HEIGHT 22 in (56 cm)
GROUND CLEARANCE 19 in (48 cm)
TRAILER LENGTH OVERALL (W/O COUPLER) 263 in (6.7 m)
TRAILER GROSS VEHICLE WGHT (GVWR) 6,990 lb – 10,390 lb (3,171 kg – 4,713 kg)
TRAILER GROSS AXLE WGHT (GAWR) 7,000 lb (3,175 kg)
TRAILER APPROX. WEIGHT SHIPPED (VARIES WITH DIFFERENT ACCESSORIES ) 3,600 lb (1,633 kg)
NUMBER OF AXLES 2
AXLE CAPACITY RATING (EACH) 3,500 lb OR 5,200 lb (1,588 kg – 2,359 kg)
COUPLER CHANNEL (POSITIONS/HOLES) 5/6
STANDARD COUPLER SIZE 2 5/16 in BALL
BRAKES Y
TIRE SIZE (NOTE: ALL RADIAL TIRES) ST235 / 85R16
TIRE LOAD RANGE E
WHEEL / RIM SIZE (DIA./WIDTH/BOLT PATTERN )

14 in to 15 in  / 6 in  / 5 ON 4.5 in
SHELTER ON TRAILER HEIGHT N/A
OVERALL LENGTH WITH TOWER MOUNTED 387 ½ in (9.8 m)
UID Label MIL-STD-130 Available

Shelter Model

Specifications TM54-80S
TOWER AVAILABLE WITH TRAILER UNIT GUYED – X & XX HEAVY DUTY

UNGUYED – TU MODELS
ALUMINUM SHELTER SIZE 84 in (2.1 m) L x 58 in (1.5 m) W x 74 in (1.9 m) H
TRAILER WIDTH OVERALL 90 1/2 in (2.3 m)
TRAILER WIDTH, FRAME ONLY 88 in (2.2 m)
TRAILER DECK HEIGHT 22 in (56 cm)
GROUND CLEARANCE 19 in (48 cm)
TRAILER LENGTH OVERALL (W/O COUPLER) 263 in (6.7 m)
TRAILER GROSS VEHICLE WGHT (GVWR) 6,990 lb – 10,390 lb (3,171 kg – 4,713 kg)
TRAILER GROSS AXLE WGHT (GAWR) 7,000 lb (3,175 kg)
TRAILER APPROX. WEIGHT SHIPPED (VARIES WITH DIFFERENT ACCESSORIES ) 5,600 lb (2,540 kg)
NUMBER OF AXLES 2
AXLE CAPACITY RATING (EACH) 3,500 lb OR 5,200 lb (1,588 kg – 2,359 kg)
COUPLER CHANNEL (POSITIONS/HOLES) 5/6
STANDARD COUPLER SIZE 2 5/16 in BALL
BRAKES Y
TIRE SIZE (NOTE: ALL RADIAL TIRES) ST236 / 85R16
TIRE LOAD RANGE E
WHEEL / RIM SIZE (DIA./WIDTH/BOLT PATTERN ) 16 in / 6 in / 6 ON 5.5 in
SHELTER ON TRAILER HEIGHT 125 in (3.2 m)
OVERALL LENGTH WITH TOWER MOUNTED 387 ½ in (9.8 m)
UID Label MIL-STD-130 Available
